Manual Wheelchair

DESCRIPTION

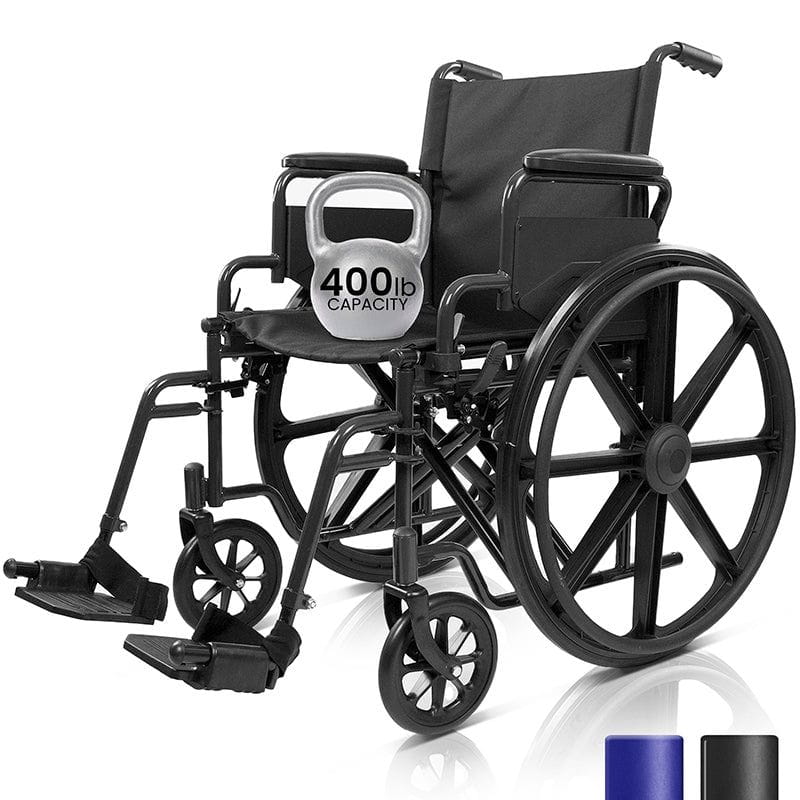

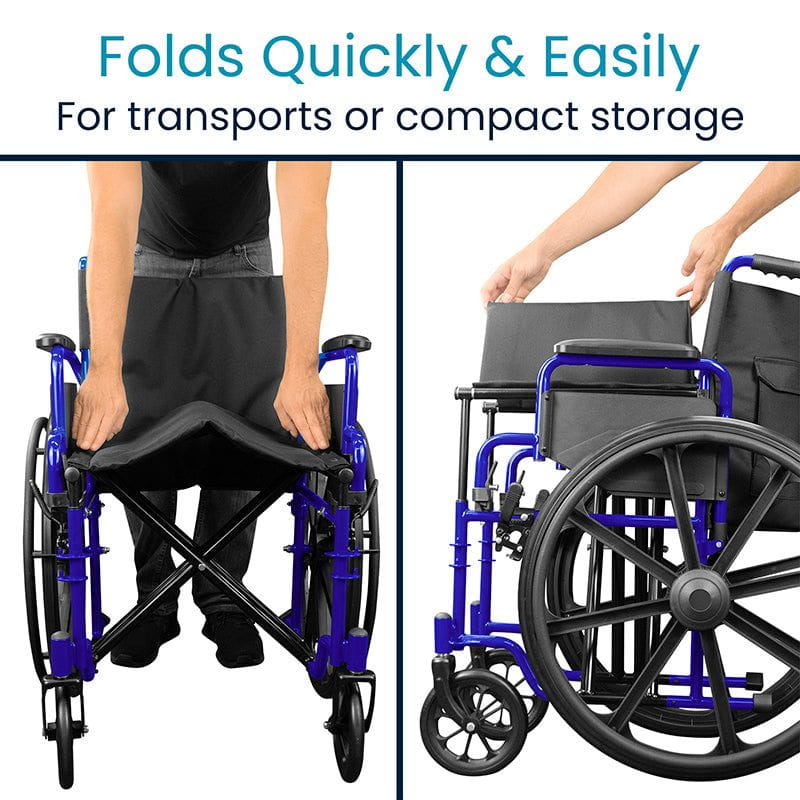

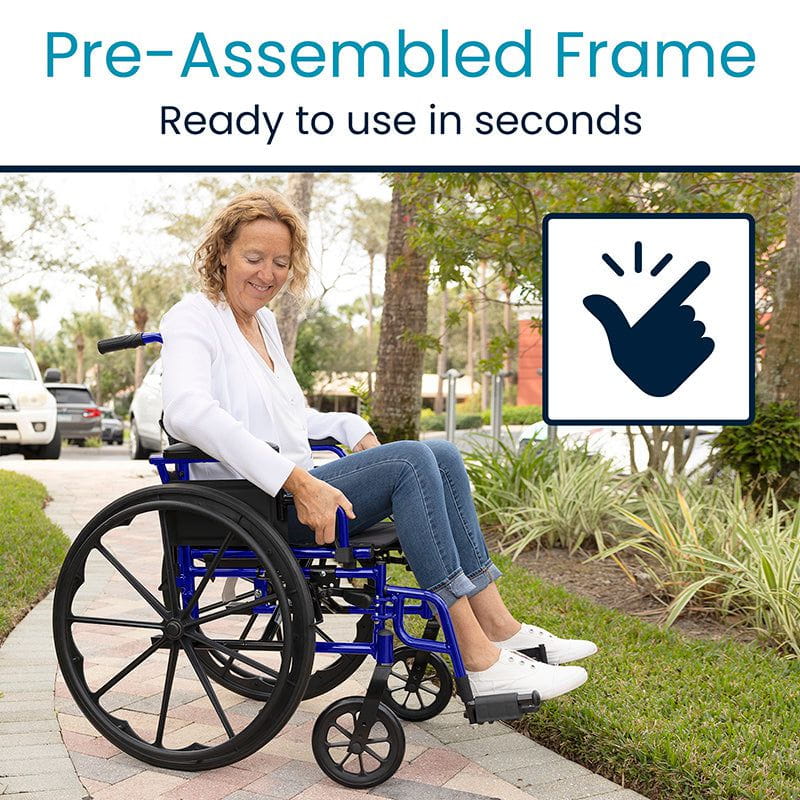

Experience a durable yet lightweight mobility solution designed for a variety of individual needs. With a strong steel frame, this wheelchair can support up to 400 pounds. It can also be folded for easy transportation and storage. The 20-inch wide seat and padded armrests ensure comfort, while the adjustable footrests allow for a more personalized fit.

SPECIFICATION

Heavy-Duty And Lightweight

• Product Dimensions:

  • Seat width: 20"

  • Seat height: 19.50"

  • Seat depth: 16"

  • Back height: 18"

  • Total width: 27"

  • Total height: 36.3"

  • Total length(with footrest): 42"

  • Max loading: 400 pounds

• Product Weight: 45 pounds

DESCRIPTION

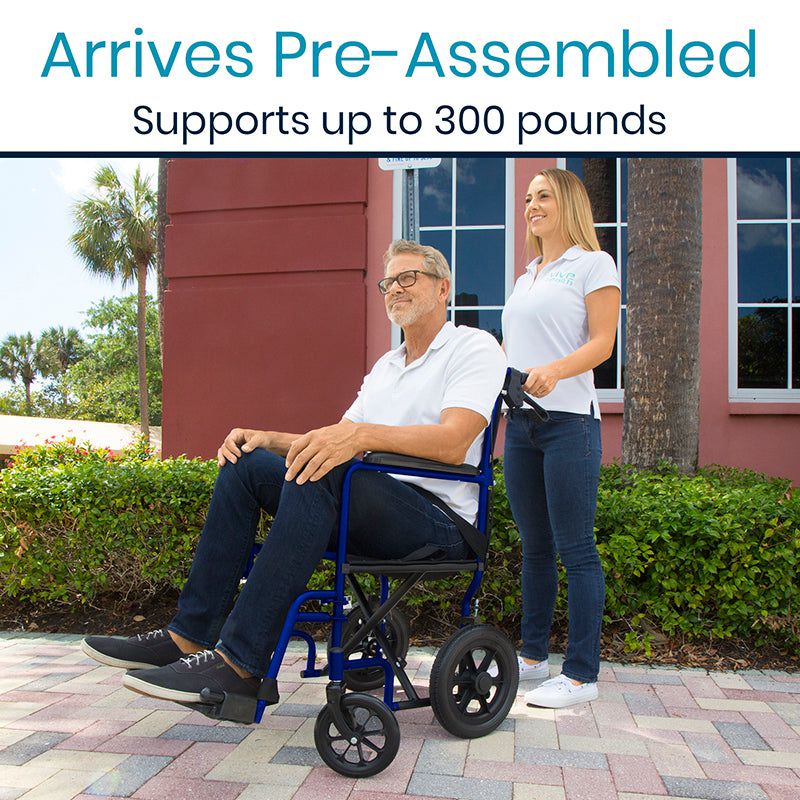

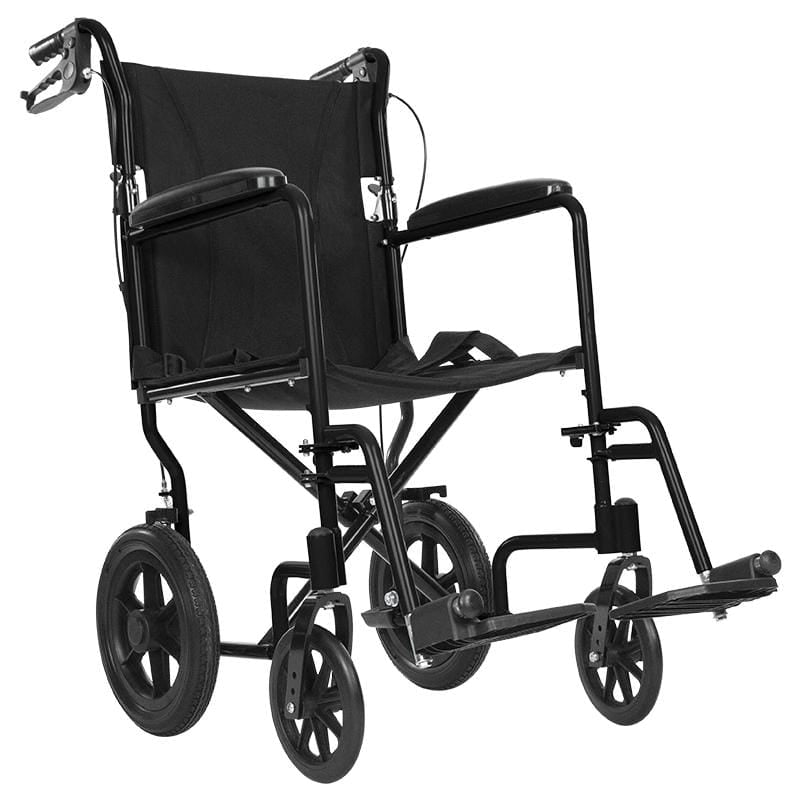

Effortlessly transport patients or loved ones anywhere with the convenient Vive foldable transport wheelchair. With a sturdy frame that can hold up to 300 pounds, this durable wheelchair offers a spacious 19" seat along with a padded backrest and armrest for maximum comfort. Thanks to its two folding points, the transport chair can easily be folded flat for compact storage or easy transportation in most vehicles.

COMFORTABLE SEATING

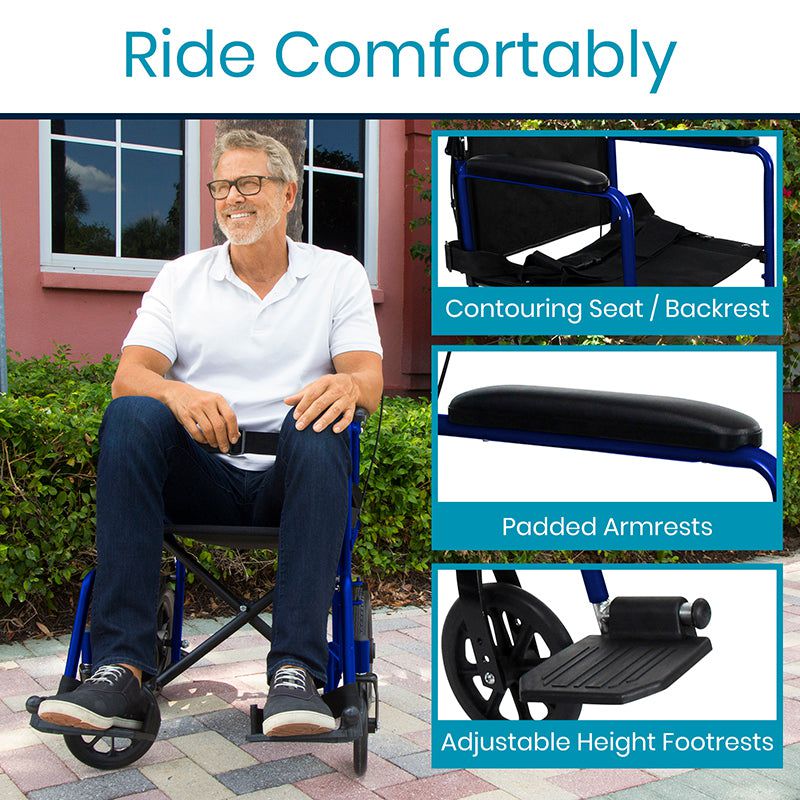

Transport an adult patient or loved one with ease using the secure, foldable wheelchair equipped with a generously-sized seat, padded backrest, and armrests.

DURABLE AND LIGHTWEIGHT
Built with a sturdy lightweight steel frame, this folding wheelchair boasts adjustable footrests and a capacity of up to 300 pounds.

LARGE REAR WHEELS
The large 12” rear wheels provide added stability and allow for safe and easy maneuvering on uneven surfaces.

COMPACT FOLDING DESIGN
Easily folded for storage, the backrest can also be folded down to fit in most vehicles for convenient portability.

SPECIFICATION DETAILS

• What’s Included:

• Transport Wheelchair

• Uses:

• Mobility aid for transporting another individual

• Not suitable for self-transportation

• Product weight: 29 pounds

• Dimensions:

• Base when open: 19” by 32”

• Handle Height: 40”

• Front Wheels: 8”

• Back Wheels: 12”

• Folded: 8.25” by 30”

• Seat Widths: 19”

• Seat Depth: 16"

• How To Assemble:

  • Remove the footrest by releasing the locking lever and swinging the footrest outward

  • Using a 14mm wrench, loosen the bolt on the underside of the footrest assembly

  • Raise or lower the footplate to the desired position, ensuring the footplate will be a minimum of 2” from the floor for safe clearance

  • Tighten the bolt and reinstall the footrest

  • Locate two black tabs on the back of the transport chair frame and push the tabs downward to release the handles

  • Gently lower the hand grips until they are tucked neatly against the seat of the chair. Note: the hand grips do not extend under the seat

  • Holding both armrests, pull the armrests together until the seat is completely folded

• Unfold the transport wheelchair by slowly pulling the armrests a part until the seat is fully extended

• Raise the hand grips upward until the backrest is fully extended and the bars snap into place with an audible click

• Position the footrests on the placement tabs on the transport chair frame. Swing the footrests towards the center to engage the locking lever

• How To Adjust The Footrest Height:

• How To Fold the Transport Wheelchair:

• Care Instructions:

• Using a dry, soft cloth, wipe down the frame weekly. For thorough cleaning, use an automotive wax or similar product

• If exposed to moisture, dry immediately

• Do not use abrasive cleaners
